Item specifics
  • Technology: Infrared
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Power Consumption(W): 30W
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Windows 8,Windows XP
  • IR Distance(m): 150M
  • Wall Bracket: Side
  • is_customized: Yes
  • Dimensions (L x W x D)(mm): 6
  • Video Compression Format: H.264
  • Alarm Action: Email Photo
  • High Definition: 1080P(Full-HD)
  • Viewing Angle (Degree): 85°
  • Special Features: Waterproof / Weatherproof
  • Minimum Illumination(Lux): 0.01 lux(F1.6,AGC ON)
  • Style: Dome Camera
  • Color: White
  • Power Supply(V): 12V
  • Model Number: YC-HD785R-20X/YC-HD785R-30X
  • Type: IP Camera
  • Sensor Brand: SONY
  • Connectivity: IP/Network Wired
  • Brand Name: YUNCH
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Lens (mm): 4.5--94MM/4.5-133mm
  • Audio Output: NOT
  • High Definition: 1080P(Full-HD)
  • is_customized: Yes
  • p2p: support
  • Sensor: sony
  • Ships From: SHENZHEN
  • Viewing Angle (Degree): 61.4~ 2.9
  • Auto Tracking: Support
Product Description

Dome:    (  ipcctv7.imwork.net:8080   )                       user: admin   password:******

30X2



20 new



Key Features





1. Adopt Hiksion high performance 1/2.8" 2.0MP CMOS

2. Powerful 20/30X optical zoom

3. IR video analysis technology, 30000 hours IR life.
4. Quickly Installation Structure
5. IP 66 all-environments protection
6. .ONVIF2.0 protocol to bring the convenience for the back end device and platform software access
7. IR array LED , night vision distance up to 150m

8. Auto Tracking function

9. Waterproof, Windshield Wiper



Technical Parameter



Model YC-HD785R-20X/YC-HD785R-30X
Camera
Image Sensor SONY Exmor CMOS
Effective Pixels 2Megapixel
Lens 20X(f=4.7-94mm)/30X(4.5-133MM)
Min. Object Distance 10mm(wide) ~ 1000mm(Tele)
Mini. Illumination 0.05 lx (F1.6,50IRE, ICR O ), 0.01lx (F1.6,50IRE, ICR On)
Electronic Shutter 1/1-1/10000s
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual
Day/Night Auto(ICR) / Color / B/W
S/N Ratio > 50 dB
Video&Audio
Video Compression H.264/MJPEG
Video Output Not  BNC(1.0Vp-p / 75 ), PAL / NTSC
Image Resolution 1080P(1920×1080)
Main Stream PAL: 3M(1~15fps), 1080P/720P(1~25fps);NTSC: 3M(1~15fps), 1080P/720P(1~30fps)
Extra Stream PAL: D1(1~25fps);NTSC: D1(1~30fps)
Bit Rate 64K~8Mbps
onvif support
Memory card support 8G .16G ,32G,64G
PTZ Part

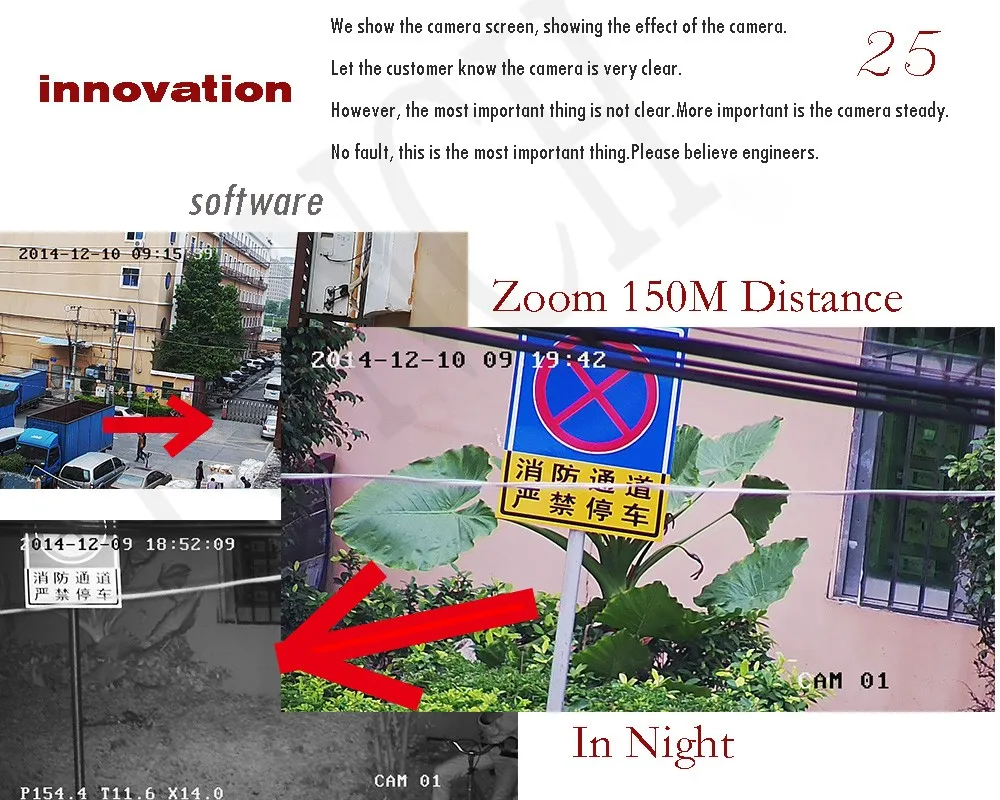

IR Distance 150M/200M
Auto Tracking Yes
Pan/Tilt Range Horizontal: 0°~350°endless, Vertical: -10°~90° auto Flip
Manual Control Speed 0.01°-350°/s
Preset Speed 350°/s
Preset 256
PTZ Mode 8 auto scan, 8 tour, 4 pattern
Wiper Support
Info Display Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
Idle Motion Activate preset/scan/tour/ patter if there is no command in the speci ed period
Time Task Auto activation of Preset/Scan/Tour/ Pattern by preset-time




Protocol PELCO-P,PELCO-D
Network
Ethernet 10BaseT/100BaseTX
Network Functions TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPOE/DDNS/NFS/RTSP
Max Remote Users 128
Processor Soc
Operating System Embedded Linux
Resource Simultaneous remote monitoring, remote operation & local recording
Remote Operation Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade
User Interface WEB
General
Power Supply DC12V
Power Consumption 50W(Max)
Working Temperature Outdoor:(-35 °C ~+60 °C )
Working Humidity 0~95%(No condensation)
Protection Level IP66




qe2 (45)

112tru12112tru14 (4)112tru14 (5)112tru14 (6)112tru14 (8)112tru14 (1)112tru14 (7)112tru14

waf1431 (1) waf1431 (2) waf1431 (3) waf1431 (4) waf1431 (5) waf1431 (6) waf1431 (7) waf1431 (8) waf1431 (9) waf1431 (10) waf1431 (11) waf1431 (12) waf1431 (13) waf1431 (14) waf1431 (15) waf1431 (16) waf1431 (17) waf1431 (18) waf1431 (19) waf1431 (20) waf1431 (21) waf1431 (22) waf1431 (23)


B1 B2 B3 B5 B6 B7 B8 B9 1111







Packaging Details
  • Unit Type: piece
  • Package Weight: 8.0kg (17.64lb.)
  • Package Size: 35cm x 35cm x 35cm (13.78in x 13.78in x 13.78in)
