Item specifics
  • Alarm Action: FTP Photo,Local Alarm,Email Photo
  • Technology: Infrared
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Supported Operating Systems: Windows 7,Windows 98,Windows 8
  • High Definition: 1.0 Megapixels
  • is_customized: Yes
  • Color: Black
  • IR Distance(m): 30m
  • Video Compression Format: H.264
  • Minimum Illumination(Lux): 0.001 Lux
  • Power Consumption(W): 8W
  • Special Features: Waterproof / Weatherproof
  • Connectivity: IP/Network Wireless
  • Model Number: SCM-SW2632HD-WIFI
  • Power Supply(V): 12V
  • Network Interface: Wi-Fi/802.11/b/g
  • Type: IP Camera
  • Sensor Brand: SONY
  • Dimensions (L x W x D)(mm): 20*10*10cm
  • Style: Bullet Camera
  • Lens (mm): 3.6mm
  • Processor:: HiSilicon 3518E/3516C
  • Sensor:: 1/3" OV1135 1/2.7" OV2023 CMOS
  • Resolution:: 1280*960/1920*1080
  • Material:: High Quality Metal Shell Body
  • Connectivity:: IP/Network Wireless
  • Lens (mm):: 3.6mm
  • Power output:: DC 12V 2A
  • Power outer diameter:: 5.5mm(outer)*2.1mm(inner)
  • Storage:: Built-in 32G TF Card
  • Audio Output: Other
Product Description



FTP Motion Detect WiFi 1.0MP HD 1280x720P/1280 x 960P /1920*1080P Bullet IP Camera 802.11b/g/n Wireless Outdoor Waterproof Surveillance Network Camera + US/UK/EU Plug Power Supply+Built-in 32G TF Card.

Features:

  • High Resolution 1.0/1.3/2.0 Megapixe1/4\'\' OV9732 CMOS/1/3\'\'  AR0130CMOS/1/2.7\'\'OV2710 Sensor (720P/960P/1080P)
  • 1280x720P/1280x960P/1920*1080P Resolution 25fps Real Time
  • Support IE, Google browser
  • Support iphone, Android smart phone
  • Weatherproof & Waterproof
  • 48Pcs IR Leds With 30m IR Distance
  • HD 1.3/2.0 MP 960P/1080 IR outdoor camera, low Illumination
  • P2P Motion Detect, Video lost, Network Break
  • Day & Night vision
  • Net weight: 0.5 KG Approx
  • Wireless Protocols : 802.11b/g/n, 150Mbps, 50-100m
  • High Quality Metal body
  • DC 12V 2A  US/UK/EU Plug Power supply
  • Built-in 32G TF Card

Detail picture:

aeProduct.getSubject()

002-1

2632-0102

2632-0202

2632-ed-04

Choose Lens:

lens choose

Camera wire:

The camera factory default is a wire with hard reset,when you need the camera with audio,the reset key connector needs to be replaced with an audio connector as following pictures:

The camera also has a reset function in the software,so when you choose the camera with audio have no hard reset button,do not worry about returning factory settings.

camera wire-black-1

wire-audio-1

Wifi module and antennas:

wifi module-1

Specification:

Camera General Model SCM-SW2632CD/ED/FD-3.6MM-WIFI-32G
Shape Bullet
Mount Types Wall Bracket
Power Supply DC 12V 2A (US/UK/EU Plug option)
IR-CUT Yes
Performance Motion detect, video lost, network break, IP conflict, storage device full or error
Network Network Interface  RJ45 10/100MB Ethernet interface
Wireless WiFi 802.11 b/g/n
Protocol Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP
Network Transmission P2P
IP Address Dynamic IP and static IP address
System / Hardware Alarm Notice FTP Photo, E-mail alerts
Lens Megapixel Lens 3.6mm (Default) /6mm/8mm
Sensor 1/4" OV9732 CMOS1/3" OV1135 CMOS/ 1/2.7"OV2023 CMOS
Processor HiSilicon 3518E /3516C
Min. Illumination Color:0.6Lux (F1.2, AGC ON),0 LUX with IR
Media Format Video Compression Format H.264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable.
Sensor Size 1/4 inch/1/3inch/1/2.7inch Progressive Scan
Video Bit rate 100Kbps~6Mbps
Pixels 1.0MP /1.3MP/2.0MP
Image Sensor CMOS
Frame Rate (FPS)  PAL:1-25fps, NTSC:1-30fps
Resolution Main stream 1280*720, Sub-stream 704*576
Night Vision Infrared Distance   20m
Configuration 48Pcs Infrared LEDs
Physical Environment Environment Outdoor, Indoor
Protection level IP65 / Metal body shell
Operate Temperature -30~60 degree. humidity less than 90%(non-condensing)



Package Included:

1x HD 1280*960P /1920*1080P WiFi Wireless IP Network Camera

1x Power Supply

1x Bracket

1x 32G TF Card

Power Adapter Plugs:EU/US/UK/AU:

power plug

The EU-Power Length of cable is1.2m, US/UK-Power Length of cable is 1m.

If the Length can not meet your needs,you can choose the following link to buy:

extension cord

Packing and Size:

aeProduct.getSubject()

61-1

FAQ:
1 ,Q:What’s the default ip address of the camera ?

   F: 192.168.1.88

   Username : admin

   Password : admin

2,Q: Does the cameras support Motion Detect,FTP,Email alarm, RTSP and so on ?

   F: Yes ! All the IP Cameras we are selling support these functions .

1)Please Setup the motion detection in the Camhi APP software and Web .

PC Client software:www.scp-cctv.com/softwear/pcclient.rar

Username : admin

Password : empty

2)To use the FTP function, you need to apply for a user name and password on the FTP server, and apply for a certain storage space at the same time, and require the user to write and create subdirectories to the storage space.

3)Email alarm:1,after completing the content, click on the application, in the test, test finished, suggesting successful test.

2, send mail server needs to support POP3 protocol, many mail servers in order to strengthen security, reduce spam, turn off the agreement, so users need to check the sending mail server when the server supports POP3, otherwise it will lead to mail success.

3,For some ssl-certified mail server, you must check the ssl option to send successfully

4)RTSP URL for VLC media Player :

URL address:RTSP://IP:554/11(First bit stream)    RTSP://IP:554/12(Second bit stream)      RTSP://IP:554/13(Third bit stream)

3,Q: What’re the ports information of the cameras ?

   F : ONVIF 2.1 Port: 8080  RTSP Port :554  HTTP Port :80

4,Q:How to do there is no video image display through IE browser ?

   F:No plugins installed,the plug-in must be installed when accessing the IP Camera for the first time using the Internet Explore.

5,Q:When I finish the steps to add the camera to the Camhi list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.88 in the menu .

   F:Maybe the default ip address is not in the same network segment as your router. The camera IP and your router must be in the same betwork segment.if not,you need to change the camera IP to the same to router.

Now the factory IP camera has been set to automatically obtain IP,so you can use it diretly

6, Q:Can the camera support Audio?

   F:The camera with audio need external pickup can be a sound.if you use NVR to record,the NVR need to support audio  ,the stored video will have a sound.

The camera connects to Pickup as following:

camera connect pickup

7, Q:What is the wireless wifi camera?

  F:Wireless wifi camera  don\'t need cable, as long as the camera power supply, in a network environment can work.Wireless networking.

8,Q:How much the value of goods will be marked on package and name?

F:Usually,one camera, i remark: camera and the value is about 4dollars and two cameras is about 6 dollars.

Because commercial courier needs customs, such as DHL / UPS and so on,the value will be close to the real purchase price.Of course, the customs duty is also the responsibility and obligation of each citizen.

If you have any question,please feel free contact me,thanks.

Scene application:

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()aeProduct.getSubject()

Real Pictures :

720P indoor

aeProduct.getSubject()

720P Outdoor

720p

960P Outdoor

960p-1

Mobile phone APP:

Android and IOS System User can Search "CamHi" APP in Android Market or Apple Store.Please don\'t download the APP in Google play.

aeProduct.getSubject()

Recent software upgrade, to the camera\'s own WIFI added a password,some operation steps need to change,please check the following:

app operation



Monitor on your mobile phones:

Android and IOS System User can Search "CamHi" APP in Android Market or Apple Store.



aeProduct.getSubject()


View camera on Web:
The camera needs to be in the same network segment with the router in order to be out of the image, so from November 2016 after all the factory camera, the default factory have been changed to automatically obtain IP. So when you view the camera on Web,first check the camera IP via PC Client,Camera IP is not fixed 192.168.1.88.( Recommended with IE browser

qiren

When you press the reset button,the camera IP change fixed192.168.1.88,need to change the camera is automatically obtain IP as following on IE browser to change.

0215-01

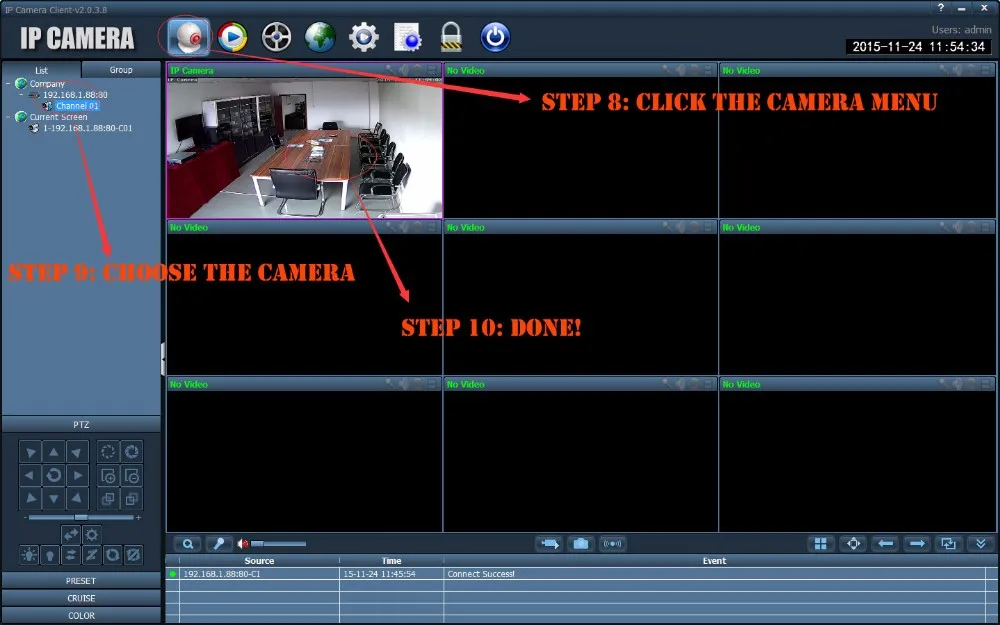

PC Client:

You can download online :

www.scp-cctv.com/softwear/pcclient.rar

aeProduct.getSubject()


aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
