Item specifics
  • Technology: Infrared
  • Connectivity: Closed System/CCTV Wired
  • Style: Dome Camera
  • Color: White,Pink
  • Sensor: CMOS
  • High Definition: 960P HD
  • Power Consumption(W): 280mA
  • Supported Operating Systems: Windows XP,Windows 7,Windows 98
  • IR Distance(m): 10-20M
  • Installation: Ceiling
  • Brand Name: smar
  • Power Supply(V): DC12V 1A
  • is_customized: Yes
  • Type: AHD Camera
  • Minimum Illumination(Lux): 0LUX(IR ON)
  • Lens (mm): 3.6mm
  • Model Number: SAE50-AX4CV100B/AX3CV130B
  • Audio Output: Not audio output
  • Special Features: Indoor
  • Special Features: Analog High Definition
  • Sensor: 720P: 1/4'' OV9712, 960P: AR0130
  • Lens: 1080P 3.6MM ( 6MM/8MM Optional )
  • Max Transmission Distance: Common 75-3lines can be up to 500m
  • Effective Pixel: 1280*720@25fps, 1280*960@25fps
  • Video Standard: AHD-M
  • LED: 24PCS With 15Meters IR Distance
  • IR Cut Filter: Yes
  • Shell: Plastic
  • Work : Must Work with AHD DVR
Product Description

CCTV Camera 720P 960P AHD Camera  24 IR LED 3.6mm Wide Lens Night Vision Security Surveillance Dome Camera   IR-Cut Filter


Item Description

1/4" 1.0 Megapixel CMOS AHD Chip

1/3" 1.3 Megapixel CMOS AHD Chip

MUST work with AHD DVR which support AHD-M Mode!

Best choice for project reconstruction.

 You can upgrade an old analog security system to 1.0MP HD cameras without changing cable routes.

 AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

Usually use Coaxial-Cable,SYV-75-3 cable can transfer video over 500meters.


Specification of Camera:

Model NO.                                                 SAE50-AX4CV100B / SAE50-AX3CV130B


Image Device                                           1/4"CMOS 1.0 Megapixel  /1/3" CMOS 1.3 Megapixel

TV System                                                  PAL/NTSC

Resolution                                                 1280 (H) x 720 (V) /25fps,1280 (H) x 960 (V) /25fps

Min. Illumination                                        0Lux(IR-ON )

S/N Ratio                                                   >50Db(AGC OFF)

Video Output                                             1CH AHD HD/CVBS Standard Singal Output(Switchable)


Focal Length                                              Standard 3.6mm (2.8/6/8/12/16mm)optinal


SHUTTER/AGC                                        Auto 1/50(1/60) ~ 1/10000 )

AGC                                                            AUTO

BACKLIGHT Compensation                  AUTO

White Balance                                          AUTO

Day/Night                                                  IR-CUT Switch

Max Transmission Distance                  Over 500m via 75-3 coaxial cable


Infrared LED                                           24pcs TYNTEK F5 12mil LED

IR Distance                                             10-20 Meters

Infrared Spectrum                                  850nm

ICR                                                           IR-CUT


Operation Temperature                        -10~ +50

Storage Temperature                            -20~ +50


Input Voltage/Current                             DC12V,<300mA

Adapter Requirement                             DC12V 1A


Color                                                         White

Dimensions                                             100*100*90mm

Net Weight                                               250g/pcs


Note: This Analog Camera Default 3.6MM  Lens, If you need other Lens, Please leave a message to us on your order page.

7 Angle of Lens

7 How to choose Camera Lens

7-1 How to choose Camera Lens


Packing List:


1 * 720P/960P AHD Camera

1* User Manual


Note: 720P/960P AHD Camera must be work with AHD DVR, then will be work normal; But the AHD camera must be connected to match AHD DVR , otherwise, it still can\'t work properly, Please check the table below:

(Note:What\'s the difference between AHD camera and the traditional analog camera?

Similarities:They are transmission through coaxial cable;

Difference: AHD camera is digital signal transmission, direct connection monitor didn\'t image output; Traditional analog cameras is analog signal transmission, directly connects the monitor has image output.)


AHD Camera

Camera Resolution


DVR Resolution

Work Together

720P AHD Camera





960P AHD Camera

1080P AHD Camera



720P AHD Camera


1080P AHD DVR /1080N  AHD DVR



960P AHD Camera

1080P AHD Camera



Item Recommend:

1. Our AHD Camera not include Power Adapter and BNC/Power Cable, We can recommend High quality Power and BNC/Power Cable for you:

2. We recommend that you use professional 4CH/8CH/16CH AHD DVR (AHDM AHDNH AHDH) With AHD Camera work together. Typically, More than 90% of buyers likes the following AHD DVR and CCTV accessories.

3. Recommend the High Order, High Evaluation ,Good Price of the product to you is our responsibility, if you like these, Please add them to your shopping list:




Product Picture



Function Display

Mechanical IR-Cut Filter

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.


What is an IR Cut Filter?

An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

NOTE: Not all Day/Night Cameras have an Auto IR Cut filter.

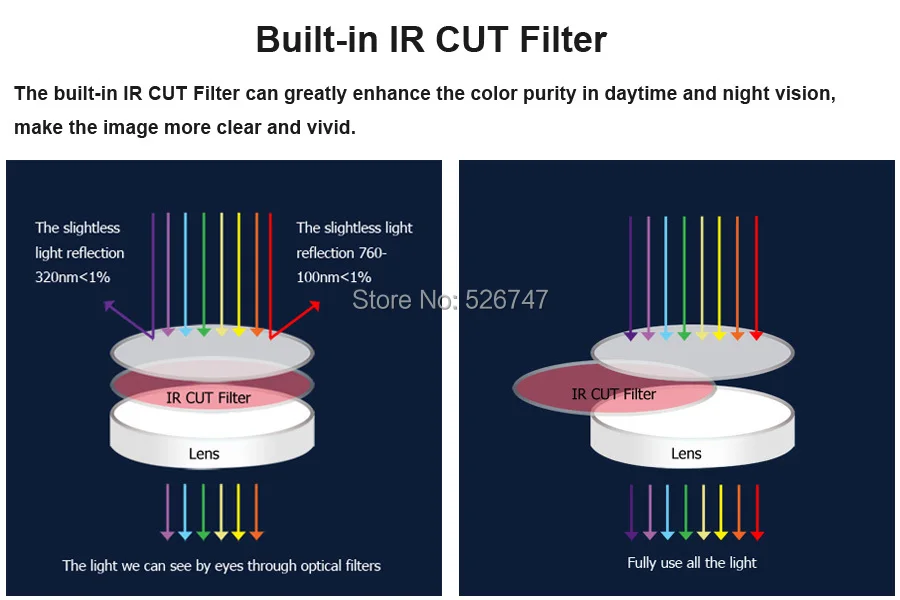

Built-in IR CUT Filter
Camera without IR CUT Filter

What is AHD?

AHD is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).


In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.


AHD is a novel technique pioneered These products and applications enable seamless and friendly transition of video surveillance systems from analog to digital, be it all-new digital installations or upgrades from existing analog installations.

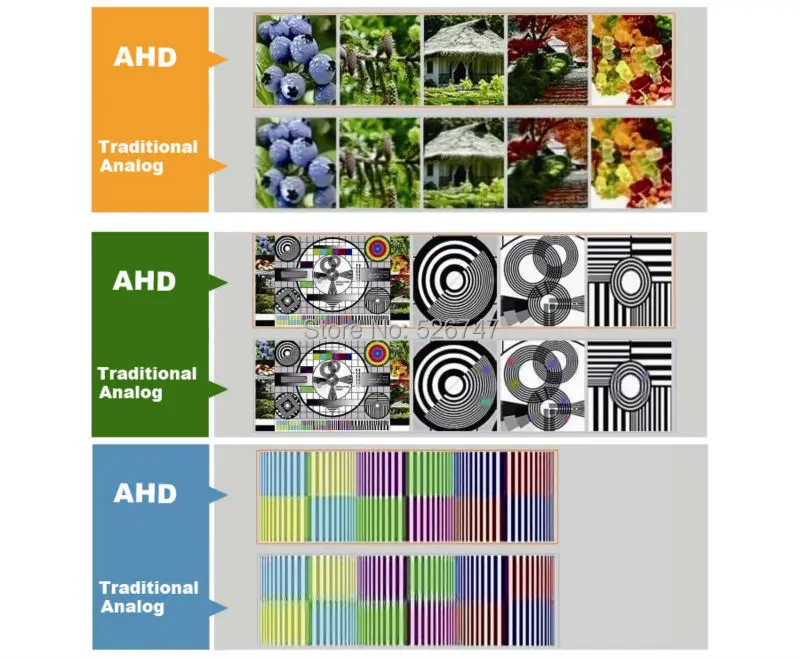

AHD Cameras Image Quality

ahd camera image quality
How to choose Lens?
Lens selection1

AHD camera and the traditional analog camera connected to the AHD DVR as shown below:

AHD Camera connect AHD DVR
